Specifications

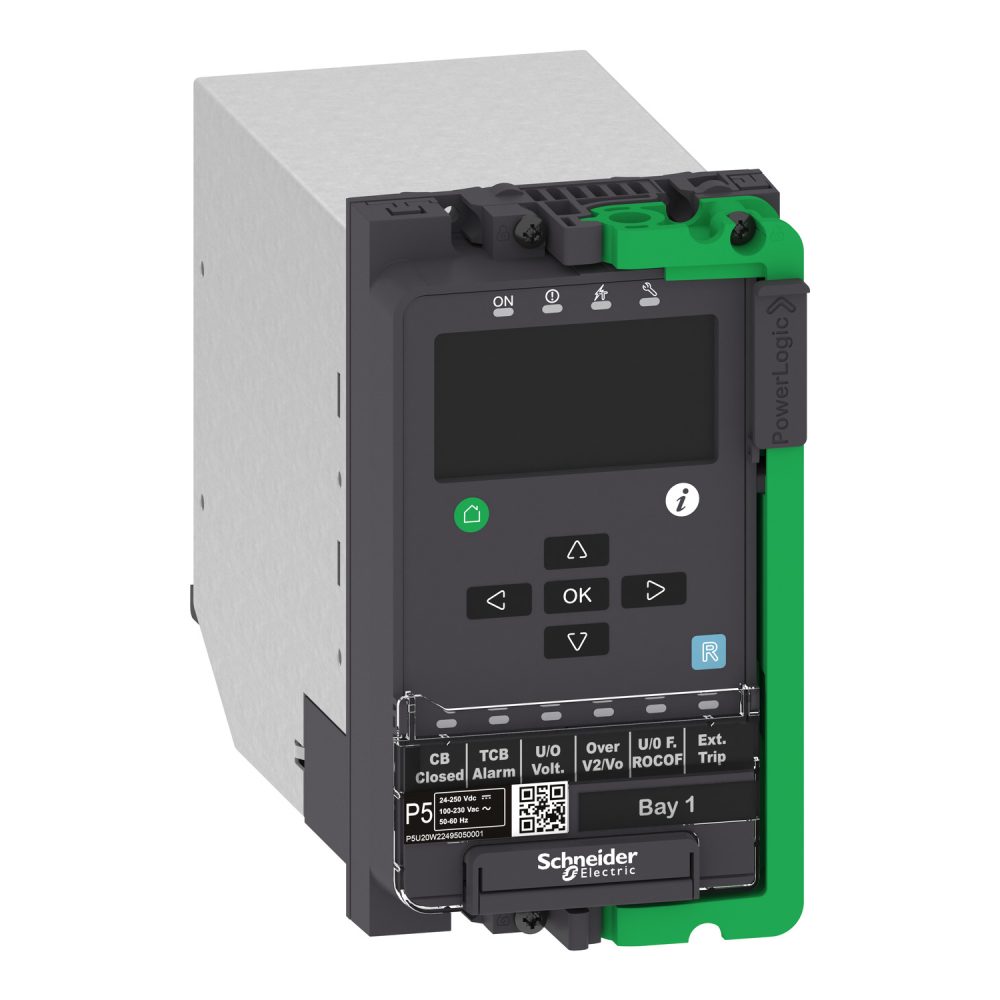

| Range of product | PowerLogic P5 |
|---|---|
| Product or component type | Protection and control relay |
| Relay application | Universal |
| product reference | P5U20-AABA-BABAH-BAEA |
| Mounting case size | 20TE |
| Device mounting | Flush |
| Mounting mode | Withdrawable |
| power supply | 24…240 V DC 100…230 V AC |
| measuring inputs | : 1/5 A CT phase current 3 : 1/5 A CT residual current 1 : 1 A CT residual current 1 |
| Number of sensors | 0 temperature sensor(s) 0 arc sensor(s) |
| number of Digital Inputs (DI) | 4 |
| number of analogue inputs | 0 |
| number of Digital Outputs (DO) | 3 DO 1 watchdog |
| number of analogue outputs | 0 |
| communication ports | RJ45 2 rear Extension port 1 rear with backup memory USB port 2 front |
| communication protocols | IEC 61850 ed. 1 IEC 61850 ed. 2 DNP3 over ethernet Modbus TCP EtherNet/IP |
| Cybersecurity | Port hardening Firmware signature Client IP address filter Secured communication with assciated tools Security policy management Role-based access control Security log LDAP RADIUS based user authentication IEC 62443-4-2 SL1 |
| protection functions | Phase overcurrent 50/51 Earth fault overcurrent 50N/51N Capacitor bank unbalance 51C Broken conductor 46 I2/I1 Current unbalance 46 I2/I1 Cold load pick-up Switch ON to fault (SOTF) H2 detection H5 detection Breaker failure 50BF Recloser 79 Thermal overload protection 49 Phase undercurrent 37 Negative sequence overcurrent 46 Excessive starting time, locked rotor 48/51LR Motor restart inhibition 66 Capacitor overvoltage 59C Lockout relay 86 CT supervision 60 Programmable stages 99 Programmable logic Programmable curve |
| measurement functions | Current 3-phase Current zero sequence Current positive sequence Current negative sequence Current ratio of negative and positive Frequency Phasor diagram of currents or voltages Current 2nd, 15th harmonics with THD |
| control functions | Switchgear control and monitoring Programmable switchgear interlocking Local/remote control |
| controllable switchgear devices | 6 controlled + 2 monitored objects |
| number of setting groups | 4 |
| monitoring functions | Trip circuit supervision 74 Circuit breaker monitoring Relay self-monitoring |
| logs and records | Event recording Disturbance recording Tripping context Relay maintenance |
| Switchgear diagnosis type | CT supervision ANSI code: 60 Trip circuit supervision ANSI code: 74 |
| Connections – terminals | Screw (digital input/output) Ring lugs (analog inputs and outputs) |
| Time synchronisation protocol | SNTP |
|---|---|
| Software name | EcoStruxure Power Device ESetup Easergy Pro: virtual simulation test |
| Web server | Embedded HTTP server |
| Display type | LCD 192 x 96 pixels |
| Number of key | 1 customizable |
| Local signalling | 4 x LED 6 x LED tri-colour programmable |
| Height | 176 mm |
| Width | 102 mm |
| Depth | 219 mm |
| Net weight | 2.5 kg |
